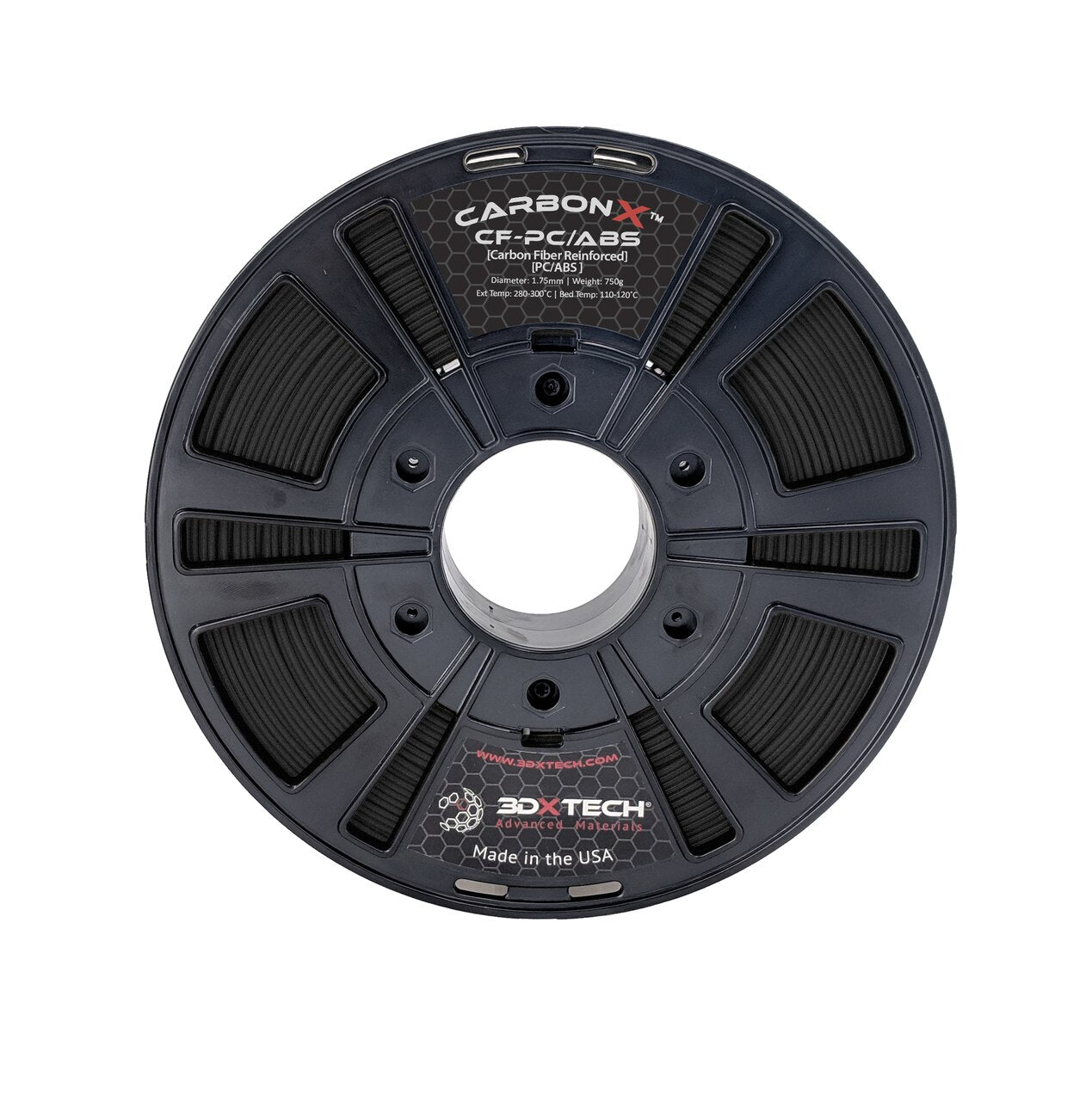

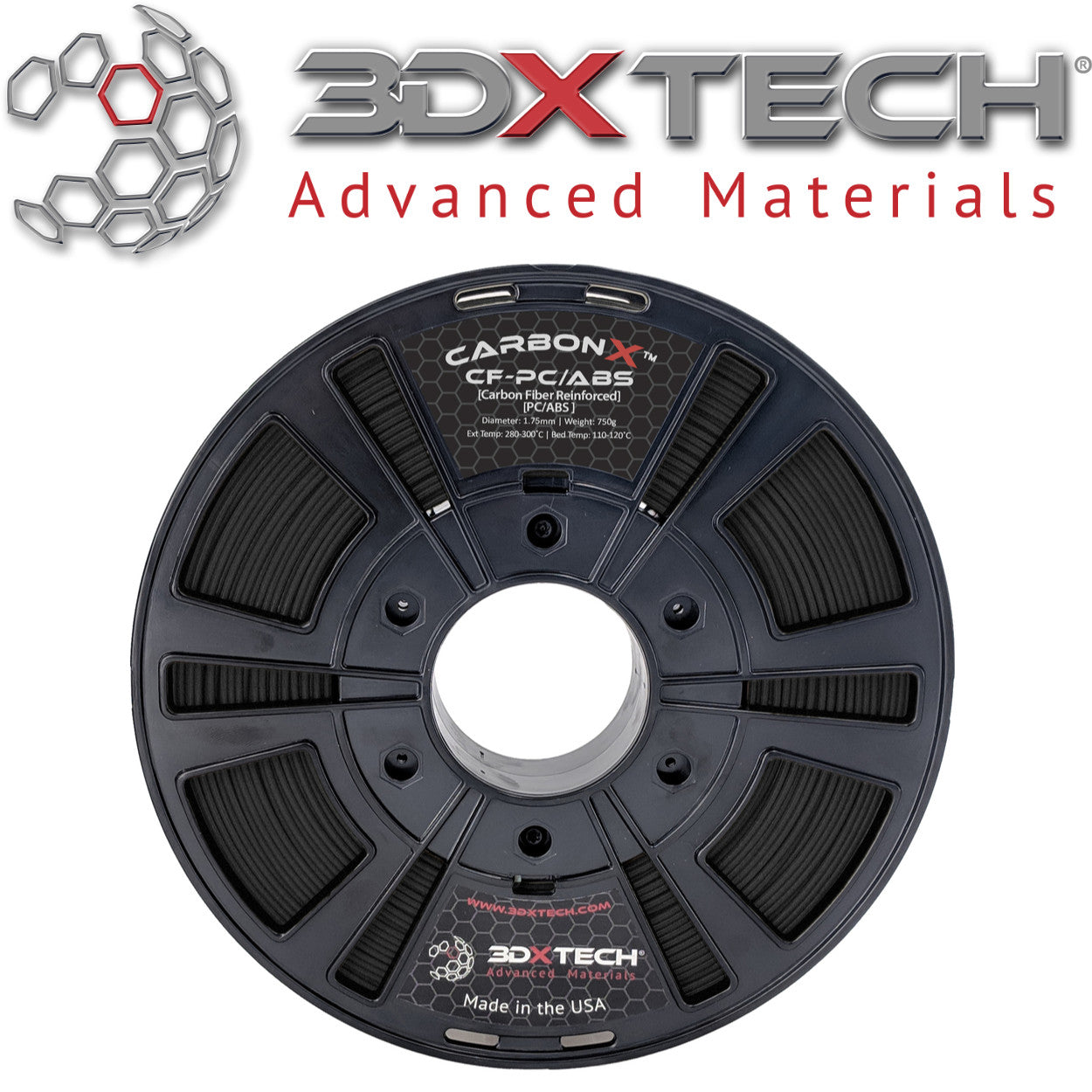

CARBONX™ Carbon Fiber PC/ABS Filament - Black - 2.85mm - 0.75KG

Only 4 left
SKU: 09-D-4-D-5561 Barcode: 7512345878
$30.00 USD
-51% $61.00 USD $30.00 USD

Do you need help choosing the right material or 3D Printer for your application or require a quote to purchase? Contact Us

3d filament net weight MATERIAL NET WEIGHT: 0.75KG
Custom sizes may be available, contact us for details.
3d print settings PRINT SETTINGS: SEE BELOW.
Print settings listed in the product description below.
3d data sheet Canada DATA SHEETS & COFC: AVAILABLE UPON REQUEST.
Contact us to inquire about documentation availability.

CarbonX™ PC/ABS Carbon Fiber Reinforced PC/ABS 3D Filament

3DXTech CarbonX Nylon Carbon Fiber Filament Canada

CarbonX™ CF-PC/ABS has been formulated to offer improved thermal resistance and mechanical properties while retaining an ease of print-ability that makes it ideal for anyone seeking a structural component with high heat, high stiffness, excellent surface quality, and dimensional stability.

CarbonX™ CF grades are abrasive and will quickly wear out a brass nozzle.  We recommend using Hardened Steel Nozzles

3d printing temperature guideline Printing
Temperature:

Notes:
280°C - 300°C
  • Extruder:  280-300°C
  • Bed Temp:  100-120°C
  • Bed Prep:  PEI Sheet or tape, Kapton/PI Tape, Glue stick on clean glass, ABS/Acetone Slurry
  • Nozzle: We strongly recommend a 0.4mm orifice or larger using Hardened Nozzles
  • Layer Height:  Ideal layer height is 60% of nozzle diameter.  We do not recommend printing layers below 0.25mm with carbon fiber grades.  Lower than 0.25mm may create too much back pressure in the hot end and result in poor feeding, jams, drive gear clicking, and eating a notch into the filament.
  • Support:  Our Aquatek water soluble support works great to create complex parts.
