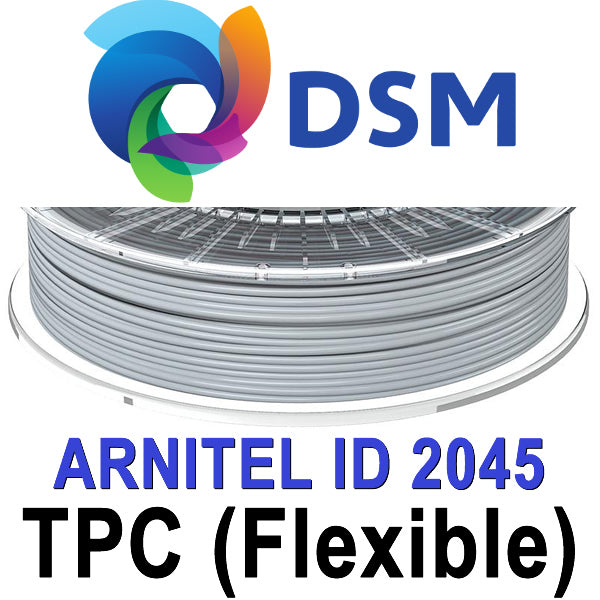

DSM Arnitel 2045 TPC Flexible Filament - Grey - 2.85mm - 0.5 KG

Out of stock
SKU: 26-C-4-D-3693 Barcode: 8719956550096
Regular price $24.95 CAD
Regular price -64% $69.95 CAD Sale price $24.95 CAD

Do you need help choosing the right material or 3D Printer for your application or require a quote to purchase? Contact Us

Arnitel® ID2045 is a highly flexible TPC (thermoplastic copolyester) that can be used in a broad range of applications from sports mouth guards to electronics. It is a flexible polymer with very good UV- and chemical-resistance compared to other flexible polymers such as TPU (thermoplastic urethane).

Arnitel® ID2045 is an ECO label filament made with 50% bio-based feedstock. It brings speed to your 3D printing production – it loads onto the machine and prints twice as fast as other TPCs. It combines this easy and fast printing with high performance characteristics enabled by excellent inter-layer adhesion due to its slower crystallization behavior.

Possible applications

  • Automotive, Aerospace, Railway, Motorsports – e.g. lighting frames, tubes, wipers

  • Flexible tools and electronics

  • Healthcare – such as prosthetics, bruxism splints

  • Sports & Lifestyles – e.g. shoe midsoles, mouth guards, shin guards, glasses, earbuds, smart watches, jewelry

 3d filament net weight NET WEIGHT: 0.5 KG (1.1 LB)

3d printing temperature guideline Printing
Temperature:

Notes:

220°C - 245°C
  • Heat bed: ± 40 - 60° C
  • Nozzle size: ≥ 0.25mm
  • Layer height: ≥ 0.1mm
  • Print speed: Low / Medium
  • Fan speed: 0%
  • Flow rate: ± 100%
  • Retraction: No
  • Printing surface: Glass + Adhesive / PET tape
  • Experience level: Intermediate
  • Enclosed printer needed: Preferred
  • Heated Build Chamber: No

*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these ranges if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends and printer offsets that it is extremely difficult to give an overall one-size-fits-all setting.

*) First layer : 100 - 150% of first layer thickness.

*) Arnitel® ID 2045 can be used with a range of nozzle temperature (210–250 °C / 410–482°F). Preferred temperature to print your object is 230°C / 446°F. To generate a homogeneous melt, the melt temperature should always be above 200°C / 392°F. Optimal mechanical properties will be achieved at melt temperature between (210–250 °C / 410–482°F).

*)  Print speed: 20 - 50 mm/s (obeying the maximal throughput in cm3/s of the extruder)

*)  Do only remove printed object from print bed when print bed has cooled down to ambient temperatures, as otherwise printed part can deform severely.
